Importance of DRO Setup

A properly installed DRO provides operators with real-time digital positioning, eliminating errors from manual readings and improving precision to micron-level accuracy. Manufacturers adopt DRO systems to:

  • Enhance CNC precision

  • Speed up machine setup

  • Minimize measurement errors

  • Evaluate the impact of linear scales on repeatability

  • Achieve consistent machining results

At ARM Technologies KSA, we ensure every installation delivers long-term stability and accurate readings.

Setup Procedure (Professional Approach)

1) Machine Assessment

Evaluate the machine’s condition, axis movement, mounting positions, and mechanical alignment.

2) Linear Scales Installation

  • Mount scales on clean, flat, vibration-free surfaces

  • Ensure proper spacing and alignment

  • Allow unobstructed axis movement

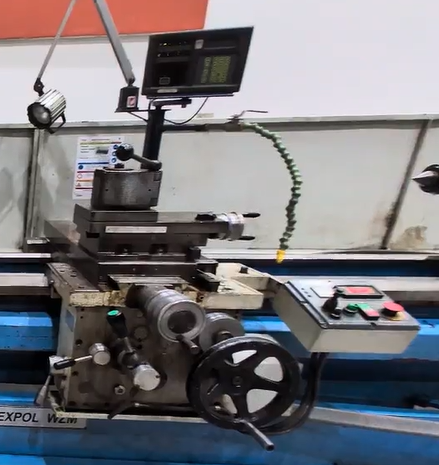

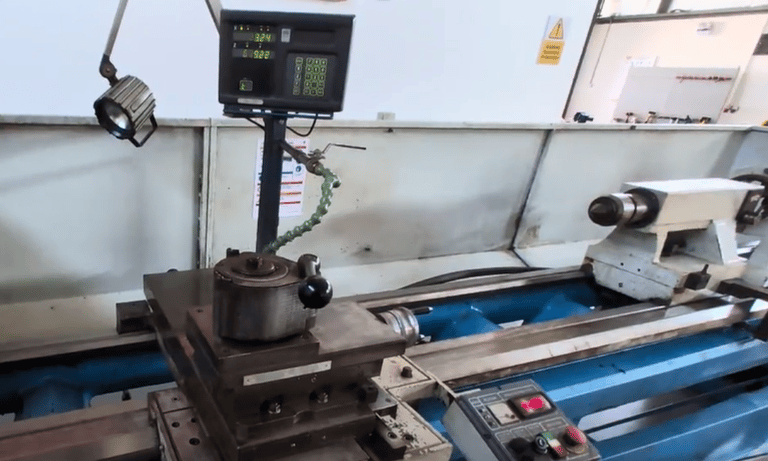

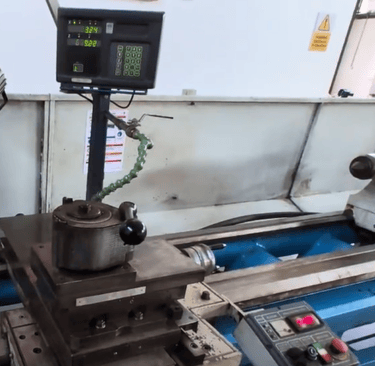

3) DRO Display Integration

  • Place the display ergonomically for operator comfort

  • Ensure clear visibility

  • Secure the console to prevent vibration interference

4) Cable Routing & Protection

  • Route cables away from debris, coolant, and moving parts

  • Avoid EMI interference near motors and drives

  • Use suitable cable shielding and protective conduits

5) System Calibration

  • Calibrate the DRO based on the machine’s travel to ensure:

  • Accurate measurement conversion

  • Correct axis count orientation

  • Appropriate resolution settings

6) Accuracy Verification

  • Validate readings using a dial indicator or precision measuring tool to ensure micron-level precision.

7) Operator Training

  • Provide hands-on training to maximize the benefits of the new system.

  • Tools & Components Used

Tools:

  • Screwdrivers , Allen keys ,Drill ,Precision measuring tools

Components:

  • High-precision linear scales , DRO console , Mounting brackets , Shielded cables , Connectors , Power supply unit (PSU)

These components are carefully selected for durability and consistent performance.

Key Benefits of DRO Installation

  • Higher machining accuracy

  • Faster setup and operation

  • Improved productivity and workflow

  • Easy digital readings for operators of all skill levels

  • Consistent and repeatable results

  • A DRO upgrade is one of the fastest ROI improvements for any CNC lathe or milling machine.

A DRO upgrade is one of the fastest ROI improvements for any CNC lathe or milling machine.

Technical Specifications

Resolution: 1 micron

Accuracy: ±5 to 10 microns

Voltage: 110–240 V AC

Display: X & Z (Y) axis

These specifications match what machinists typically search for when evaluating DRO systems online.

Customer Frequently Asked Questions

1) Is DRO compatible with all CNC machines?

Most modern lathes and milling machines can support linear scales and a DRO system.

2) How long does installation typically take?

Usually 3–6 hours depending on machine complexity.

3) Is regular maintenance required for DRO systems?

Minimal maintenance, such as periodic cleaning and cable checks, is sufficient.

4) Can DRO genuinely improve precision?

Absolutely. A 1-micron resolution scale significantly boosts precision compared to manual dials.

5) Is operator training included?

Yes. Comprehensive on-site training is provided after installation.

Why Choose ARM Technologies KSA

✔ Skilled engineers with hands-on installation experience

✔ High-quality components for long-term reliability

✔ Calibration and verification using certified measuring tools

✔ Customer training and after-service support

✔ Full service coverage across Saudi Arabia

✔ We don’t just install the system—we ensure accuracy, reliability, and performance.
